Military Specification Sheet
MIL-S-19622/7B(SH)
|
(B) Stuffing Tube, Nylon: Body, NPT
This specification is approved for use by the Naval Sea Systems Command, Department of the Navy, and is available for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and the issue of the following specification listed in that issue of the Department of Defense Index of Specifications and Standards (DODISS) specified in the solicitation: MIL-S-19622.
|
INCH-POUND |
MIL-S-19622/7B(SH)
24 June 1986
DOWNLOAD: |
SUPERSEDING
MIL-S-19622/7A(SHIPS)
18 January 1967 |
|
|
|

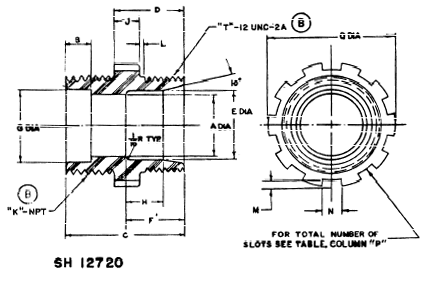

(B) FIGURE 1. Dimensions and configuration
(B) denotes changes.
|
(B) TABLE I. Size Selection |
(B)
Tube
Size |
Military
Part
No.
|
Body dimensions and configuration 1/ 2/ |
Super-
seded
Part No. |
A
DIA
|
B
|
C |
D |
E
DIA
|
F |
G
DIA
|
H
|
J |
K
3/
|
L
|
M |
N
|
P |
Q
DIA
|
T |
1 |
M19622
/7
-001 |
0.350 |
5/16 |
1-1/4 |
11/16 |
0.560 |
11/16 |
0.500 |
7/16 |
1/8 |
1/2 |
1/16 |
0.093 |
0.250 |
8 |
1-1/4 |
7/8 |
MS17047
-1 |
2 |
-002 |
.562 |
5/16 |
1-1/4 |
11/16 |
5/8 |
3/4 |
.750 |
7/16 |
1/8 |
3/4 |
1/16 |
.093 |
.250 |
8 |
1-3/8 |
1 |
-2 |
3 |
-003 |
.687 |
5/16 |
1-1/2 |
7/8 |
.765 |
.750 |
.875 |
.437 |
5/16 |
1 |
1/16 |
.093 |
.250 |
8 |
1-5/8 |
1-1/8 |
-3 |
4T |
-004 |
.825 |
3/8 |
1-1/2 |
7/8 |
.906 |
.750 |
1.000 |
.437 |
5/16 |
1 |
1/16 |
.093 |
.250 |
8 |
1-5/8 |
1-3/8 |
-4T |
5 |
-005 |
1.187 |
3/8 |
2-15/32 |
1-19/32 |
1.343 |
1.125 |
1.500 |
.750 |
3/8 |
1-1/2 |
1/16 |
.125 |
.375 |
10 |
2-1/2 |
2 |
-5 |
6 |
-006 |
1.505 |
3/8 |
2-5/8 |
1-3/4 |
1.750 |
1.375 |
1.875 |
.812 |
3/8 |
2 |
1/16 |
.125 |
.500 |
10 |
3 |
2-1/2 |
-6 |
7 |
-007 |
1.688 |
3/8 |
2-29/32 |
1-21/32 |
1.938 |
1-1/2 |
2.375 |
7/8 |
3/8 |
2-1/2 |
1/16 |
.187 |
.500 |
10 |
3-3/8 |
2-3/4 |
-7 |
8 |
-008 |
2.093 |
3/8 |
3-1/16 |
1-13/16 |
2-15/16 |
1-3/4 |
2.875 |
1 |
3/8 |
3 |
1/16 |
.187 |
.500 |
12 |
3-7/8 |
3-1/4 |
-8 |
9 |
-009 |
2.843 |
3/8 |
3-1/4 |
1-7/8 |
3-1/4 |
2 |
3.250 |
1-1/8 |
3/8 |
3-1/2 |
1/16 |
.187 |
.625 |
12 |
4-3/4 |
4 |
-9 |
|
(B)
1/ Dimensions are in inches.
2/ Tolerance shall be as follows:
Decimals - Plus or minus 0.010 per linear inch, whichever is greater.
Fractions - plus or minus 1/64 inch.
Angular dimensions - Plus or minus 30 minutes.
Threads - As specified in FED-STD-H28/2.
3/ Threads per inch shall be as specified in FED-STD-H28/7.
(B) Requirement:
Marking. Tube size and manufacturers trade mark or logo in 1/8 inch high raised letters molded on side of elbow body.
