Introducing the new CF System!

Click, click, click — The easy fit!

Easy to install, cost-competitive effective firestop for multi-cable penetrations

Front view of sleeve installation. Sleeve is inserted in wall opening. Rear view. Other half of sleeve is installed so flange fits flush against wall. Cables are layered with Actifoam®, then compression pad is placed on top and click-on cover is snapped into place.

No caulk, no putty, no tools — no kidding! Dorn Equipment’s newest product, the CF-FSP System is an innovative, click-together firestop with wall sleeve that is ideal for both new construction and existing cabling. The CF-FSP System offers an easy-to-install, competitively priced method for sealing cable penetrations through fire-rated gypsum walls. See how simple it is to install!

For more information about this U.L. Classified product, use the links below or contact a sales representative.

• Features & Benefits
• CF-FSP System components
• Installation Instructions & MSDS Sheets
• UL Classified

Features and benefits

The CF-FSP System is designed to provide a wall sleeve and seal in one installation. The major benefits of using this firestop system include:

1. Click-together, hardware-free construction eliminates the need for tools.
2. Can be re-entered without tools for the life of the building.
3. No caulk or putty is needed to seal adequately for cold smoke, FM-200 fire suppression systems or to maintain pressurized rooms.
4. The CF-FSP System accepts a wide range of cables and conduit sizes, and small cables can be bundled.
5. No new material is needed when adding cables to an existing CF-FSP System installation.
6. The CF sleeves can be installed around existing cable penetrations.

The innovative CF-FSP System offers even more advantages. Call your local representative to find out how the CF system can help you on your project!

CF-FSP System Components

Each CF-FSP System unit includes the components shown below:

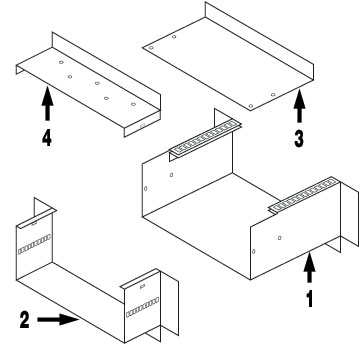

Open top wall sleeve (male housing) Click-fit retaining flange (female housing) Click-fit sleeve slide-on access panel Click-fit access panel

The metal sleeve system is manufactured in 16 gauge steel and finished with zinc yellow chromate for corrosion resistance. Sleeves are available in two sizes:

• 4" h x 6" w, part number CF-FSP-24
  and
• 6" h x 12" w, part number CF-FSP-72

Each CF-FSP System comes complete with all materials needed to provide a fire-rated seal for zero penetrating items or maximum fill.

Installation Instructions & MSDS Sheets

• CF-FSP System installation instructions (PDF file)
• Photos of typical CF-FSP System installations (PDF file)

Requires: Adobe Acrobat

The following are current UL listings for the CF-FSP System.

• W-L - 0017 - (PDF file)
• W-L - 3262 - (PDF file)

Requires: Adobe Acrobat

Search UL Web site by UL File Number
